1.125" Substrate Assemblies, K1s style, C22

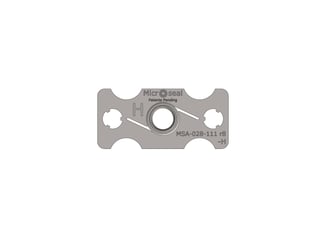

MSA-028-111-H_REV 8

MSA-028-111-H

MFC C-seal assembly / 1.125" substrate / K1s, C22

Download PDF

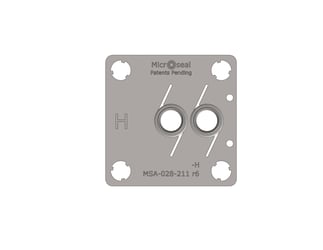

MSA-028-211-H_REV 6

MSA-028-211-H

2-port C-seal assembly / 1.125" substrate / K1s, C22

Download PDF

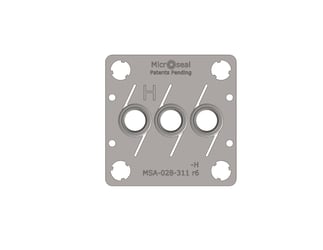

MSA-028-311-H_REV 6

MSA-028-311-H

3-port C-seal assembly / 1.125" substrate / K1s, C22

Download PDF
MSA-028-111-M-H_REV 6

MSA-028-111-M-H

Manifold C-seal Assembly / 1.125" substrate / K1s, C22

Download PDF
MSA-028-111-M86-H_REV 1

MSA-028-111-M86-H

Manifold C-seal Assembly / 1.125" substrate / K1s, C22

Download PDF

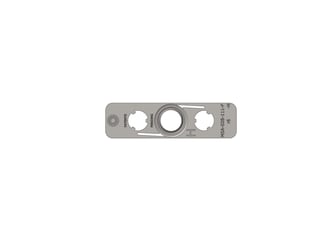

MSA-028-111-F-H_REV 6

MSA-028-111-F-H

Flange C-seal Assembly / 1.125" substrate / K1s, C22

Download PDF

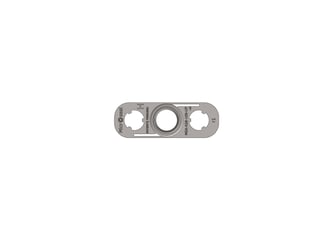

MSA-028-109-UT-H_REV 1

MSA-028-109-UT-H

Manifold C-seal Assembly / 1.125" substrate / K1s, C22

Download PDF

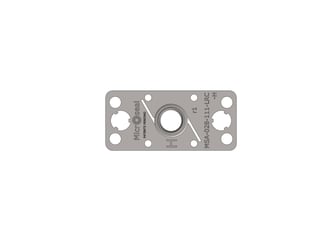

MSA-028-111-LRC-H_REV 1

MSA-028-111-LRC-H

MFC C-seal assembly / 1.125" substrate, C22, Poka-Yoke

Download PDF

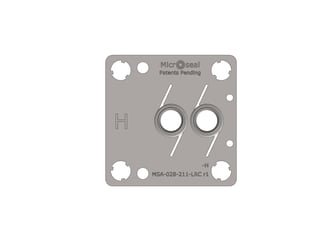

MSA-028-211-LRC-H_REV 1

MSA-028-211-LRC-H

2-port C-seal assembly / 1.125" substrate, C22, Poka-Yoke

Download PDF
Custom retainers (1)

Custom retainers, custom seals, blank seals and orifice seals available.

Please use the contact form to request customization. Contact Us
