C-seals Orifice

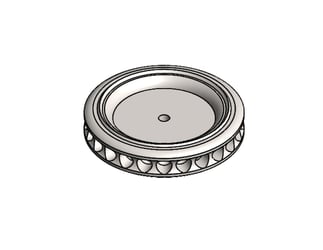

MS-028-062-XXXX-REV 3

MS-028-062-XXXX

.282" OD C-seal, 316L SS with drilled orifice +/-.0005" sizes available from .012"-.180"

Download PDF
MS-028-062-HPXXXX-REV 3

MS-028-062-HPXXXX

.282" OD C-seal, 316L SS with drilled orifice +/-.0002" sizes available from .012"-.180"

Download PDF

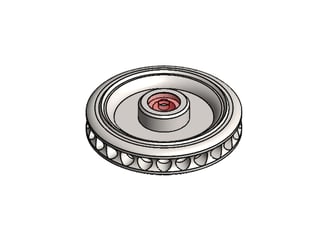

MS-028-062-SXXXX-REV 3

MS-028-062-SXXXX

.282" OD C-seal, 316L SS with ruby orifice -.0000/+.0002" sizes available from .0004"-.0810"

Download PDF

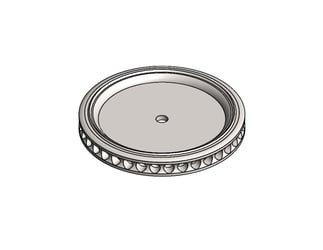

MS-043-062-XXXX-REV 3

MS-043-062-XXXX

.434" OD C-seal, 316L SS with drilled orifice +/-.0005" sizes available from .012"-.330"

Download PDF

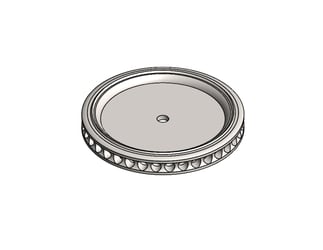

MS-043-062-HPXXXX-REV 3

MS-043-062-HPXXXX

.434" OD C-seal, 316L SS with drilled orifice +/-.0002" sizes available from .012"-.330"

Download PDF

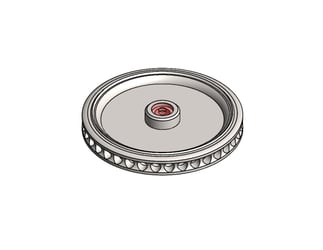

MS-043-062-SXXXX-REV 3

MS-043-062-SXXXX

.434" OD C-seal, 316L SS with ruby orifice -.0000/+.0002" sizes available from .0004"-.0810"

Download PDF
Custom retainers (1)

Custom retainers, custom seals, blank seals and orifice seals available.

Please use the contact form to request customization. Contact Us
