## W-seals

<https://microflexseals.com/hubfs/Products/Category%208/PDF/CAT-W2A-031-074_REV%201.pdf?hsLang=en>

![W2A-031-074\_REV 1](https://microflexseals.com/hs-fs/hubfs/Products/Category%208/Images/W2A-031-074_REV%201.jpg?height=250&name=W2A-031-074_REV%201.jpg)

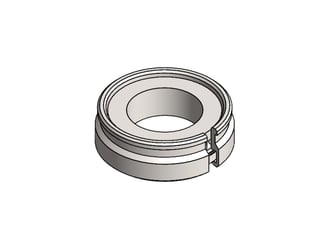

### W2A-031-074

.31" OD W-seal, 316L SS

Download PDF

<https://microflexseals.com/hubfs/Products/Category%208/PDF/CAT-W1A-040-078_REV%201.pdf?hsLang=en>

![W1A-040-078\_REV 2](https://microflexseals.com/hs-fs/hubfs/Products/Category%208/Images/W1A-040-078_REV%202.jpg?height=250&name=W1A-040-078_REV%202.jpg)

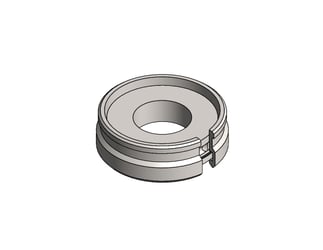

### W1A-040-078

.40" OD W-seal, 316L SS

Download PDF

<https://microflexseals.com/hubfs/Products/Category%208/PDF/CAT-W2A-031-068-H_REV%201.pdf?hsLang=en>

![W2A-031-068-H\_REV 1](https://microflexseals.com/hs-fs/hubfs/Products/Category%208/Images/W2A-031-068-H_REV%201.jpg?height=250&name=W2A-031-068-H_REV%201.jpg)

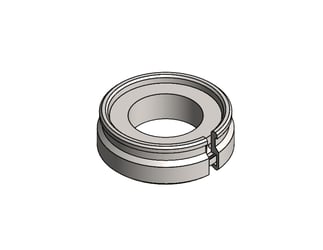

### W2A-031-068-H

.31" OD W-seal, C22

Download PDF

<https://microflexseals.com/hubfs/Products/Category%208/PDF/CXW-028-111_REV%202.pdf?hsLang=en>

![CXW-028-111\_REV 2](https://microflexseals.com/hs-fs/hubfs/Products/Category%208/Images/CXW-028-111_REV%202.jpg?height=250&name=CXW-028-111_REV%202.jpg)

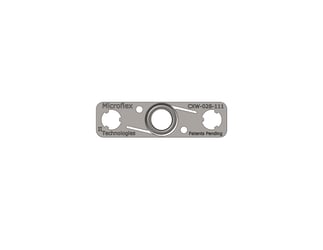

### CXW-028-111

C-seal to W-seal conversion gasket / Mates C-seal port for W-seal port for MFCs

Download PDF

![Custom retainers (1)](https://microflexseals.com/hubfs/Custom%20retainers%20(1).png "Custom retainers (1)")

Custom retainers, custom seals, blank seals and orifice seals available.

### Please use the contact form to request customization. [Contact Us](https://microflexseals.com/contact-us?hsLang=en)
